Easily mountable over existing rear view mirror, that's less distractions on your dash and less clutter. HD picture activated when vehicle is put in reverse (Autostyle reverse camera range is recommended for best quality results).



AHD (Analog High Definition Technology)

AHD technology can realise reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce colour noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.

AHD-M(TVL) Features:

• Clearer and advanced bright colour separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• Transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• Zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity.
• Compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

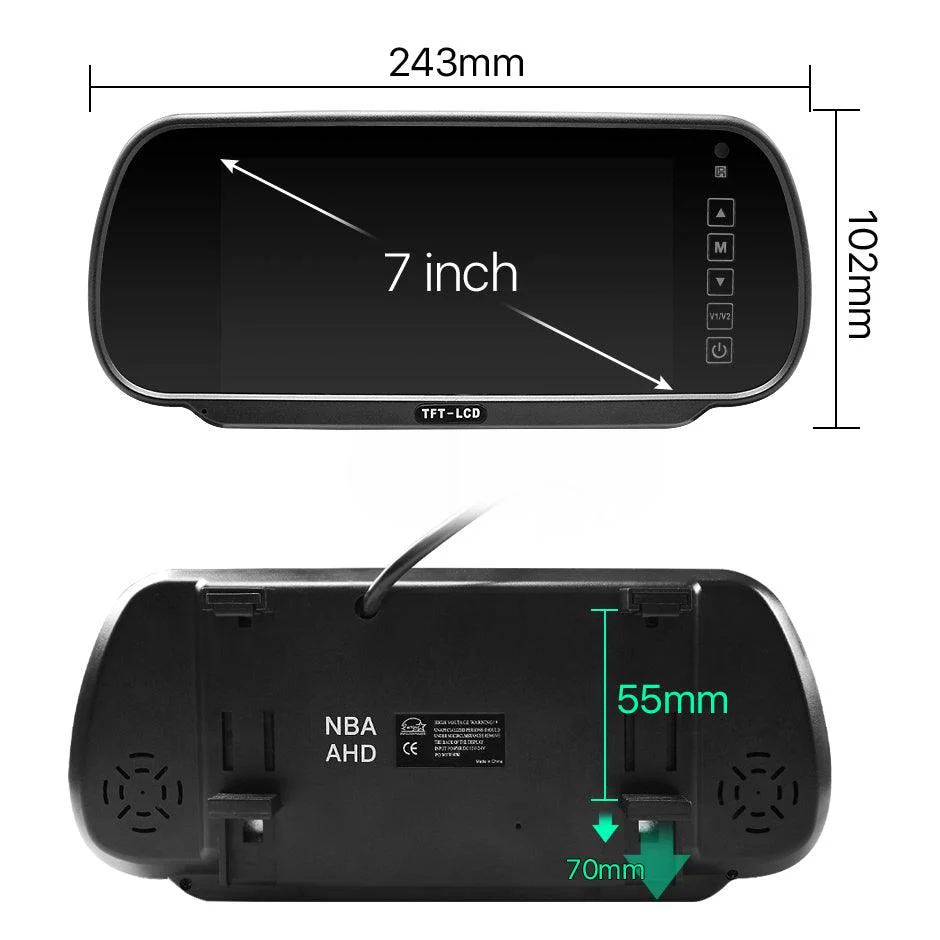

AHD Mirror Monitor

Video signal: Supports AHD and CVBS signals.

Screen size: 7-inch screen

Mirror size: 9-inch full mirror display

Format: 16:9

Screen brightness: 500CD / M2

Effective pixels of the screen: 1024*600

IPS Screen: Support

Signal format: PAL / NTSC

Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.

Power supply voltage: 12V-100V

Power consumption: <= 6W

IPS Screen

The IPS screen has a large viewing angle. Compared to other types of screens, the IPS screen looks different from the side, and its colour is not much different from the front.
